Description

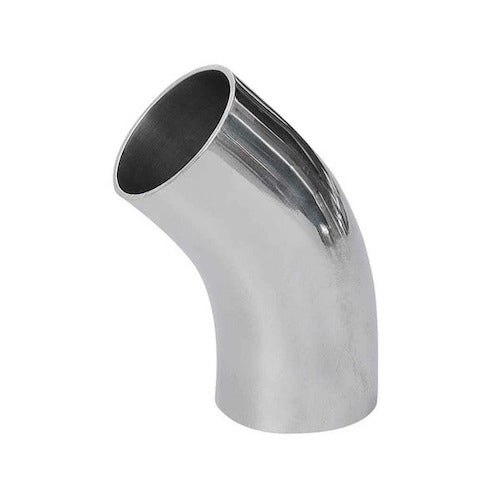

Our 1 inch 45° butt-weld elbow with tangents is a sanitary, 304 stainless steel elbow designed for high-purity connections in the food processing, brewing, industrial, and pharmaceutical industries.
It is designed with tangents meaning it extends straight on both ends, allowing for easier alignment and welding, especially automated and orbital welding. Butt welding creates a strong, seamless connection by fusing separate sanitary tubing onto each end of the elbow.
Butt-weld 45 degree elbows are sometimes referred to as weld 45 degree elbows.
Elbows with tangents are sometimes referred to as butt-weld long elbows.
Uses:
Dairy
Meat
Beverage
Wine
Beer
Cosmetics
Reverse osmosis systems
Essential oils
Juice
Aquaponics
And more
Specs
| Stainless Steel 45 Degree Butt-Weld Elbow with Tangent, Polish ID/OD | |||||
|---|---|---|---|---|---|
| Tube OD (Size) | Ctr-to-Face (A) |
Nominal Wall | Weight (lbs) |
Part Number 304 SS | Part Number 316L SS |
| 1/2" | 2.250 | 0.065 | 0.13 | SS05BW45ET316L | |
| 3/4" | 2.250 | 0.065 | 0.23 | SS07BW45ET316L | |
| 1" | 1.188 | 0.065 | 0.15 | SS1BW45ET304 | SS1BW45ET316L |
| 1.5" | 1.625 | 0.065 | 0.30 | SS15BW45ET304 | SS15BW45ET316L |
| 2" | 2.312 | 0.065 | 0.50 | SS2BW45ET304 | SS2BW45ET316L |
| 2.5" | 3.000 | 0.065 | 0.88 | SS25BW45ET304 | SS25BW45ET316L |
| 3" | 3.688 | 0.065 | 1.29 | SS3BW45ET304 | SS3BW45ET316L |
| 4" | 4.812 | 0.083 | 2.53 | SS4BW45ET304 | SS4BW45ET316L |
| 6" | 6.25 | 0.109 | 7.00 | SS6BW45ET304 | SS6BW45ET316L |
*all measurements are in inches
304 vs. 316L Stainless Steel
304 and 316L stainless steels appear visually identical, but have distinct performance characteristics.
304 stainless steel contains approximately 18% chromium and 8% nickel, making it suitable for kitchen applications and indoor environments. It performs well under normal conditions but becomes vulnerable to corrosion when exposed to salt or harsh chemicals. This makes it the more economical option for standard uses where corrosion resistance is not a primary concern.
316L stainless steel contains 2-3% molybdenum in addition to chromium and nickel, providing superior corrosion resistance, especially against saltwater and chemicals. Furthermore, 316L has a lower carbon content than 316, increasing corrosion resistance and making it ideal for welding. While it commands a higher price point than 304, it is recommended for outdoor marine environments and food processing applications involving salt.
304 is useful for some standard applications, but for the highest level of durability and harsh environments or saltwater exposure, the additional investment in 316L stainless steel is justified for long-term success.
