Description

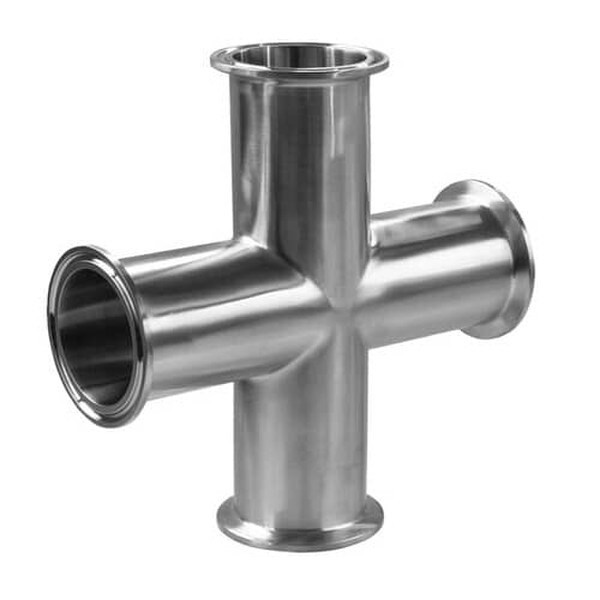

Our tri-clamp cross is a durable and high quality fitting used to connect four pipes in a cross-shaped configuration with clamps at all four ends.
Tri-Clamp crosses are fittings that allow for changes in flow direction, branching, attaching auxiliary equipment, and more. The tri-clamp connection allows for quick installation and removal and provides a smooth seal, making it ideal for clean-in-place (CIP) systems.
Made from 316L stainless steel, this sanitary tri-clamp cross has excellent corrosion resistance and maintains impressive long-lasting performance while reducing risks of turbulence and pressure loss.
Tri-clamp crosses are sometimes called cross fittings.
Uses:
Fluid distribution and mixing
Pressure control
Bottling
Filtration processes
Steam transportation
Brewery
Dairy
Beverage
Fermentation
Pharmaceutical
Winery
And more
Specs
| Stainless Steel Tri-Clamp Cross, Polish ID/OD | ||||
|---|---|---|---|---|
| Tube OD (Size) | Length (A) |
Ctr-to-Face (B) |
Weight (lbs) |
Part Number 316L SS |
| 1" | 4.750 | 2.375 | 1.00 | SS1CRS316L |
| 1.5" | 5.500 | 2.750 | 1.00 | SS15CRS316L |
| 2" | 7.000 | 3.500 | 1.50 | SS2CRS316L |
| 2.5" | 7.000 | 3.500 | 2.00 | SS25CRS316L |
| 3" | 7.500 | 3.750 | 2.50 | SS3CRS316L |
| 4" | 9.000 | 4.500 | 4.00 | SS4CRS316L |
*all measurements are in inches
304 vs. 316L Stainless Steel
304 and 316L stainless steels appear visually identical, but have distinct performance characteristics.
304 stainless steel contains approximately 18% chromium and 8% nickel, making it suitable for kitchen applications and indoor environments. It performs well under normal conditions but becomes vulnerable to corrosion when exposed to salt or harsh chemicals. This makes it the more economical option for standard uses where corrosion resistance is not a primary concern.
316L stainless steel contains 2-3% molybdenum in addition to chromium and nickel, providing superior corrosion resistance, especially against saltwater and chemicals. Furthermore, 316L has a lower carbon content than 316, increasing corrosion resistance and making it ideal for welding. While it commands a higher price point than 304, it is recommended for outdoor marine environments and food processing applications involving salt.
304 is useful for some standard applications, but for the highest level of durability and harsh environments or saltwater exposure, the additional investment in 316L stainless steel is justified for long-term success.
