Description

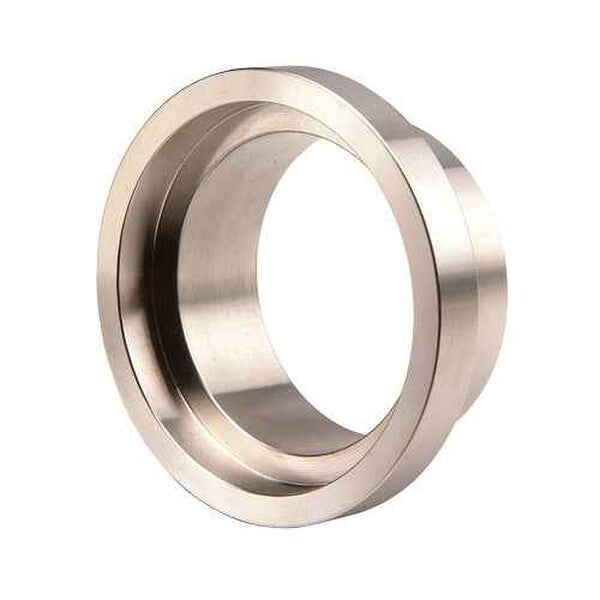

Our Stainless Steel Female I-Line Short Butt-Weld Ferrule is a precision-crafted, sanitary fitting designed to create a secure female I-Line connection point through butt-weld installation.
This durable stainless steel ferrule is engineered for hygienic, high-performance connections in sanitary processing systems. Featuring a female I-Line socket and a butt-weld base, it allows for reliable mating with male I-Line components while maintaining system cleanliness and structural integrity.
Manufactured from premium 304 or 316L stainless steel, the ferrule offers excellent corrosion resistance, strength, and cleanability—ideal for demanding environments that require consistent sanitary performance. The butt-weld end ensures a smooth, permanent connection to your existing piping, while the female I-Line end provides a snug, hygienic fit for fast and secure attachment.
Its short, compact design minimizes dead space and potential leak points, helping to streamline your fluid handling process.
Uses:
Dairy processing and milk handling systems
Wine and beverage production lines
Chemical and pharmaceutical manufacturing
Food processing and packaging equipment
Laboratory and research facilities
Cosmetic and personal care production
Steam and CIP (clean-in-place) system
And many more!
Specs
| Stainless Steel Female I-Line Short Butt-Weld Ferrules | ||||
|---|---|---|---|---|
| Tube OD (Size) | Length (A) |
Weight (lbs) |
Part Number 304 SS | Part Number 316L SS |
| 1" | 0.784 | 0.20 | SS1FISBW304 |
SS1FISBW316L |
| 1.5" | 0.948 | 0.20 | SS15FISBW304 | SS15FISBW316L |
| 2" | 1.036 | 0.30 | SS2FISBW304 | SS2FISBW316L |
| 2.5" | 1.156 | 0.60 | SS25FISBW304 | SS25FISBW316L |
| 3" | 1.218 | 0.80 | SS3FISBW304 | SS3FISBW316L |
| 4" | 1.346 | 1.00 | SS4FISBW304 | SS4FISBW316L |
| 6" | 1.125 | 2.80 | SS6FISBW304 | SS6FISBW316L |
| 8" | 1.130 | 3.50 | SS8FISBW304 | SS8FISBW316L |
*all measurements are in inches
304 vs. 316L Stainless Steel
304 and 316L stainless steels appear visually identical, but have distinct performance characteristics.
304 stainless steel contains approximately 18% chromium and 8% nickel, making it suitable for kitchen applications and indoor environments. It performs well under normal conditions but becomes vulnerable to corrosion when exposed to salt or harsh chemicals. This makes it the more economical option for standard uses where corrosion resistance is not a primary concern.
316L stainless steel contains 2-3% molybdenum in addition to chromium and nickel, providing superior corrosion resistance, especially against saltwater and chemicals. Furthermore, 316L has a lower carbon content than 316, increasing corrosion resistance and making it ideal for welding. While it commands a higher price point than 304, it is recommended for outdoor marine environments and food processing applications involving salt.
304 is useful for some standard applications, but for the highest level of durability and harsh environments or saltwater exposure, the additional investment in 316L stainless steel is justified for long-term success.
