Description

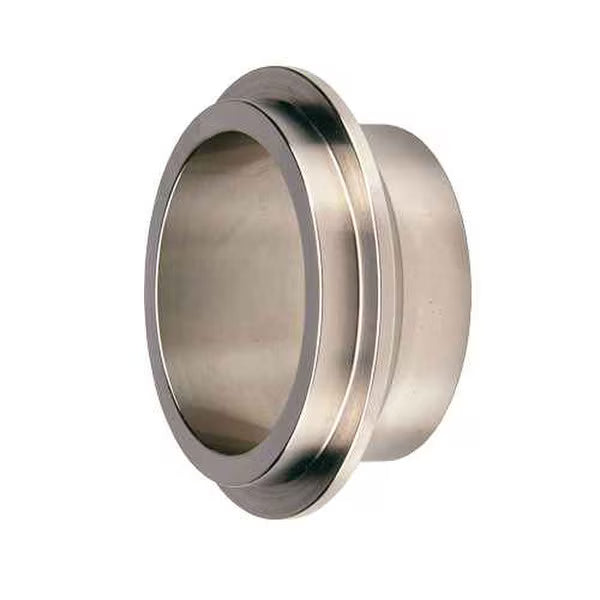

Our Stainless Steel Male I-Line Short Butt-Weld Ferrule is a high-quality, sanitary fitting designed to provide a secure male I-Line connection point via butt-weld installation.
This high-quality stainless steel ferrule is built for secure, sanitary connections in your processing system. Designed with a male I-Line end and a butt-weld base, it provides a reliable way to connect I-Line components while maintaining a clean and durable pipeline.
Available in both 304 and 316L stainless steel, this ferrule offers excellent corrosion resistance and is easy to clean—ideal for demanding sanitary environments. The butt-weld end creates a strong, flush connection to your existing piping, while the male I-Line end ensures a tight, hygienic fit that's quick to attach and disconnect.
Its compact design helps simplify your fluid handling setup by reducing leak points and improving system flow.
Uses:
Dairy processing and milk handling systems
Wine and beverage production lines
Chemical and pharmaceutical manufacturing
Food processing and packaging equipment
Laboratory and research facilities
Cosmetic and personal care production
Steam and CIP (clean-in-place) systems
And many more!
Specs
| Stainless Steel Male I-Line Short Butt-Weld Ferrules | ||||
|---|---|---|---|---|
| Tube OD (Size) | Length (A) |
Weight (lbs) |
Part Number 304 SS | Part Number 316L SS |
| 1" | 0.590 | 0.20 | SS1MISBW304 |
SS1MISBW316L |
| 1.5" | 0.765 | 0.20 | SS15MISBW304 | SS15MISBW316L |
| 2" | 0.790 | 0.30 | SS2MISBW304 | SS2MISBW316L |
| 2.5" | 0.848 | 0.60 | SS25MISBW304 | SS25MISBW316L |
| 3" | 0.906 | 0.80 | SS3MISBW304 | SS3MISBW316L |
| 4" | 1.031 | 1.00 | SS4MISBW304 | SS4MISBW316L |
| 6" | 0.937 | 2.80 | SS6MISBW304 | SS6MISBW316L |
| 8" | 0.937 | 3.50 | SS8MISBW304 | CONTACT |
*all measurements are in inches
304 vs. 316L Stainless Steel
304 and 316L stainless steels appear visually identical, but have distinct performance characteristics.
304 stainless steel contains approximately 18% chromium and 8% nickel, making it suitable for kitchen applications and indoor environments. It performs well under normal conditions but becomes vulnerable to corrosion when exposed to salt or harsh chemicals. This makes it the more economical option for standard uses where corrosion resistance is not a primary concern.
316L stainless steel contains 2-3% molybdenum in addition to chromium and nickel, providing superior corrosion resistance, especially against saltwater and chemicals. Furthermore, 316L has a lower carbon content than 316, increasing corrosion resistance and making it ideal for welding. While it commands a higher price point than 304, it is recommended for outdoor marine environments and food processing applications involving salt.
304 is useful for some standard applications, but for the highest level of durability and harsh environments or saltwater exposure, the additional investment in 316L stainless steel is justified for long-term success.
