Description

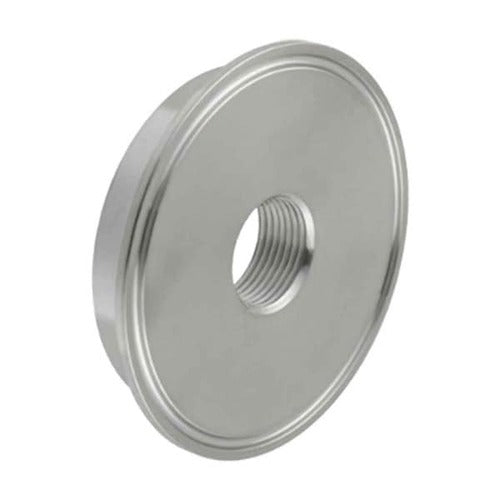

Our tri-clamp x female NPT (FNPT) thermometer cap provides an easy way to measure temperature in your process line.
Designed with a tri-clamp connection on one end and female NPT threaded port on the other, it allows for easy installation of threaded thermometer gauges. The tri-clamp ends allow for quick installation and removal, making cleaning and maintenance simple - ideal for the food, beverage, dairy, and pharmaceutical industries.
We offer a variety of thermometer cap sizes in 316L stainless steel.
Tri-clamp thermometer caps are also commonly referred to as clamp thermometer caps or tri-clover thermometer caps.
Uses:
Dairy
Meat
Beverage
Winery
Brewery
Cosmetics
Reverse osmosis systems
Essential oils
Juice
Aquaponics
And more
Specs
| Stainless Steel Tri-Clamp Thermometer Cap, Polish ID/OD | |||||
|---|---|---|---|---|---|
| Tube OD (Size) | (A) | (B) | (C) | Weight (lbs) |
Part Number 316L SS |
| 1" | 0.625 | 1.984 | 1/2" NPT | 0.18 | SS1C05FNTC316L |
| 1 1/2" | 0.625 | 1.984 | 3/4" NPT | 0.25 | SS15C07FNTC316L |
| 2" | 0.625 | 2.516 | 3/4" NPT | 0.45 | SS2C07FNTC316L |
| 2 1/2" | 0.625 | 3.047 | 3/4" NPT | 0.59 | SS25C07FNTC316L |
| 3" | 0.625 | 3.579 | 3/4" NPT | 0.82 | SS3C07FNTC316L |
| 4" | 0.625 | 4.682 | 3/4" NPT | 1.31 | SS4C07FNTC316L |
*Other NPT Sizes Available *all measurements are in inches
304 vs. 316L Stainless Steel
304 and 316L stainless steels appear visually identical, but have distinct performance characteristics.
304 stainless steel contains approximately 18% chromium and 8% nickel, making it suitable for kitchen applications and indoor environments. It performs well under normal conditions but becomes vulnerable to corrosion when exposed to salt or harsh chemicals. This makes it the more economical option for standard uses where corrosion resistance is not a primary concern.
316L stainless steel contains 2-3% molybdenum in addition to chromium and nickel, providing superior corrosion resistance, especially against saltwater and chemicals. Furthermore, 316L has a lower carbon content than 316, increasing corrosion resistance and making it ideal for welding. While it commands a higher price point than 304, it is recommended for outdoor marine environments and food processing applications involving salt.
304 is useful for some standard applications, but for the highest level of durability and harsh environments or saltwater exposure, the additional investment in 316L stainless steel is justified for long-term success.
